Microscopy is a cornerstone technique across scientific research, medical diagnostics, materials science, and many other fields. Whether you're observing biological tissues, cells, minerals, or manufactured materials, the quality of the microscopic image directly impacts the insights you can gather. One often overlooked but crucial component in this process is the cover glass.
Though small and thin, cover glass plays a vital role in protecting delicate samples and enhancing image clarity. In this article, we will explore what cover glass is, its functions in microscopy, the different types available, and why selecting the right cover glass is essential for successful microscopy work.
What Is Cover Glass?

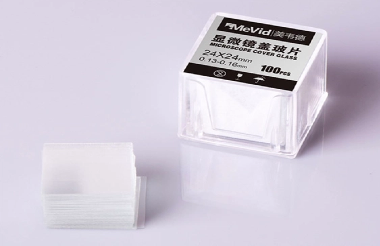

Cover glass, also known as a coverslip or cover slip, is a thin, flat piece of glass or transparent plastic designed to be placed over specimens on microscope slides. Typically, cover glasses range in thickness from about 0.13 mm to 0.17 mm, with standard sizes around 18 mm by 18 mm or 22 mm by 22 mm.
The primary purpose of the cover glass is to protect the specimen and the microscope’s objective lens by providing a smooth, consistent surface. This thin barrier also helps to maintain sample hydration and prevent contamination, especially during prolonged examination.
The Role of Cover Glass in Protecting Samples
Physical Protection
Biological and delicate samples placed on microscope slides can be fragile and prone to damage. Without a cover glass, samples risk drying out, becoming contaminated with dust or airborne particles, or even being physically disturbed during handling.
The cover glass acts as a shield that physically protects the specimen from external factors. It also prevents accidental contact with the objective lens, which can damage both the lens and the sample.
Maintaining Sample Integrity
For many biological specimens, especially live cells or tissues, maintaining a stable environment during imaging is critical. The cover glass helps retain moisture, preventing the sample from drying and shrinking, which can alter its structure and lead to inaccurate observations.
In addition, the cover glass limits the exposure of samples to contaminants or chemical agents that may be present in the laboratory environment.
Improving Image Quality Through Optical Properties
While the primary role of cover glass in microscopy is to protect delicate samples, its influence on the optical path of the microscope is equally important. The cover glass is an integral part of the light’s journey from the illumination source, through the sample, and into the objective lens. Any imperfections or inconsistencies in the cover glass can affect image clarity, contrast, and resolution, making it crucial to understand how this seemingly simple component impacts overall image quality.
Optimal Thickness for Optical Performance
Microscope objectives, especially those with high magnification (40x and above) and oil immersion lenses, are meticulously designed with a specific cover glass thickness in mind. The standard thickness targeted by most objective manufacturers is approximately 0.17 mm, often referred to as No. 1.5 cover glass.
When the cover glass thickness differs significantly from this standard, it can cause spherical aberrations—a type of optical distortion where light rays fail to converge at a single focal point. This results in images that appear blurry or out of focus, with diminished sharpness and reduced contrast. Even minor deviations from the ideal thickness can affect high-resolution imaging techniques, where precise focusing and image clarity are paramount.
Using the correct thickness ensures that light travels uniformly through the sample and cover glass before reaching the objective lens, allowing the microscope to produce sharp, crisp images with accurate color and detail representation.
Minimizing Distortions and Refractions
In addition to thickness, the optical flatness and quality of the cover glass surface play a crucial role in image integrity. High-quality cover glasses are manufactured to be extremely flat, minimizing surface irregularities that could scatter or distort light passing through them.
Imperfections on or within the cover glass, such as scratches, bubbles, or thickness variations, can cause light to refract or diffract unexpectedly, introducing artifacts or blurring in the final image. This is particularly critical in advanced microscopy techniques such as fluorescence microscopy, phase contrast, and confocal microscopy, where precise light manipulation is necessary to visualize subtle details.
Another important factor is the interaction between the cover glass and immersion oils used in oil immersion objectives. A smooth, flat cover glass surface promotes even spreading of the immersion oil, which has a refractive index close to that of glass. This oil layer eliminates the air gap between the lens and the sample, reducing light refraction and enhancing numerical aperture, thus significantly improving image resolution and brightness.
Uneven oil layers due to surface imperfections or inappropriate cover glass quality can introduce additional distortions, diminishing image quality and potentially damaging the objective lens over time.
Types of Cover Glass and Their Applications
Cover glasses come in various types, differing in material, thickness, size, and special coatings or treatments to suit diverse microscopy needs.
Standard Glass Cover Slips
These are made from soda-lime or borosilicate glass and are the most commonly used. They are suitable for routine microscopy applications including histology, cytology, and brightfield imaging.
Plastic Cover Slips
Made from polymers like polyester or polycarbonate, plastic cover slips offer advantages such as shatter resistance and flexibility. They are often used in fluorescence microscopy and live cell imaging where reduced autofluorescence and lower refractive indices are beneficial.
Specialty Cover Glasses
High-precision cover glasses with extremely tight thickness tolerances are used in advanced imaging techniques such as confocal microscopy and super-resolution microscopy.
Coated cover glasses with anti-reflective, hydrophobic, or cell-adhesive coatings improve imaging contrast, sample preparation, or cell culture compatibility.
UV-transmitting cover slips enable UV fluorescence imaging.
Proper Use and Handling of Cover Glass
To maximize the benefits of cover glass in microscopy, proper handling and mounting techniques are essential.
Always use clean, dust-free cover slips to prevent artifacts in the image.
Avoid touching the surface with fingers to prevent oils and dirt contamination.
When applying immersion oil, ensure it fully contacts the cover glass and the objective lens without air bubbles.
Choose the appropriate thickness based on the objective lens specifications.
For live cell imaging, consider specialized cover glasses that allow gas exchange and maintain sterility.
Innovations in Cover Glass for Microscopy
The demand for higher-resolution imaging and more precise sample manipulation has led to innovations in cover glass technology.
Ultra-thin cover glasses are enabling new imaging modalities by reducing light scattering.
Micro-patterned cover glasses allow for precise cell placement and tracking in live cell studies.
Smart cover glasses embedded with sensors can monitor environmental parameters like temperature and pH in real-time.
Conclusion
Though small and simple in appearance, the cover glass is a critical component in microscopy that directly influences the protection of samples and the quality of images produced. Selecting the right type, thickness, and quality of cover glass tailored to your specific microscopy technique can make a substantial difference in the accuracy and reliability of your results.
If you are in need of high-quality cover glass solutions designed for diverse microscopy applications, it’s important to partner with a reputable supplier that understands the nuances of scientific imaging.
For more information on a wide range of microscopy supplies, including precision cover glasses, you can visit www.ntmevid.com. Their expertise and product range can help you find the right materials to optimize your microscopy work.
